Paint-Spraying Equipment/Automotive Paint Shop

Paint-spraying Equipment

In the drying-type painting room, a drying-type painting separation system is set below the grating plate.

Its working principle is that the painting particles polluted by the air shall be sucked into the filtration trolley through the separation system. There are two filtration systems in this box filtration, one is the box filter, it adopts the advanced labyrinth filtration method, the filtration effect of the paint mist can reach 97%, then add a second-filter to improve the filtration effect of the filtration unit. Meanwhile, a separate unit shall be set for regular replacement. The auxiliary equipment shall be provided to monitor the system’s pressure to ensure the stable operation.

These are the advantages of the drying-type painting room:

1.Economic: Transforming from wet-type to dry-type, by means of the circulating air, it can be decreased by multiple times

2.Cost reduction: Separating the remaining paint without water, the expensive coating (as special wastes) for treatment, no time consumption, no power consumption, no chemical materials (flocculant, defoamer, bactericide), so as to reduce the corrosion of the technical equipment, without pump can reduce the power consumption and maintenance fees.

3.Efficiency

4.Adsorption ability: According to the materials of the painting surface, it can reach 100kg/m2 and even more, filtration rate: 97%.

Paint-spraying Equipment

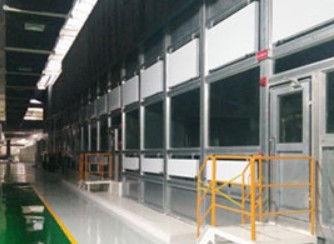

Outside of Painting Room

Operation Room of Painting Room

Centralized Ventilation Room

Circulating Pool

Drying-type Painting Room

Paint Mist Filtration System in Drying-type Painting Room

The intelligent, green and high-end modern painting production line can fully realize the processes of body electrophoresis, primer, and topcoat spraying, fully realizing intelligent production.

High-end craft

The production equipment in the painting workshop is interconnected through the electronic control system, and a workshop-level industrial Internet is established. Generally, the typical mode of "centralized monitoring and decentralized control" is adopted, and the entire electronic control system can be divided into three levels to realize different functions. All the equipment in the workshop is controlled by the network, and the number of equipment is 100% connected to the network.

PMC (Process Monitoring and Control) system monitors and controls the process, application, and transmission chain system of the body painting workshop, and can provide users with equipment status information and alarm information to improve the normal operation rate of equipment and processes, and quickly detect equipment and product problems , At the same time generate various forms of reports to meet the requirements of production and maintenance, so as to achieve a product pass rate of more than 99%.
