Flexible Fixture Library

MOQ:	Negotiable
Price:	Negotiable
Standard Packaging:	Packed with plastic films and wrap with strips
Delivery Period:	According to customer's requirement
Payment Method:	Negotiable
Supply Capacity:	Strong production capacity

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CEI-Kinte

Certification

ISO9001/FEM/ISO14001/OHSAS 18001

Model Number

Customized

Professional R&D Team

Equipment:

Automation

Flexibility:

Management:

Plant Management System

Workshop:

Press Shop/Body Shop/Paint Shop/Assembly Shop

Plant Planning:

Overall

Manufacturing:

In-house

Production Line:

New Line/Renovation & Upgrading

Highlight:

ISO14001 Automotive Smart Factory

Automotive Smart Factory ISO14001

ISO14001 smart manufacturing automotive

Product Description

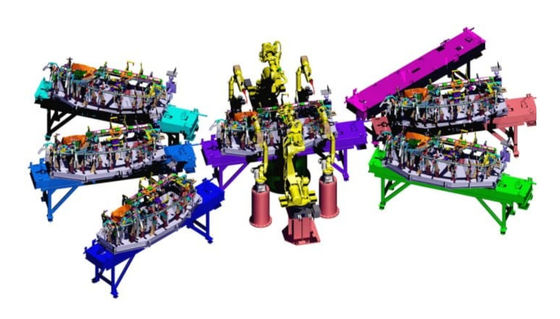

Flexible Fixture Library

The flexible fixture library has 3 types of products, including "work" type flexible fixture library, "one" flexible fixture library, and "mi" type flexible fixture library. It can be switched to produce various models. The fixture structure is simple, the mechanism is light and flexible, and the movement is flexible. , stable and precise positioning, widely used in the fixture switching of the body-in-white flexible welding production line.

Compared with the existing technology, the advantages of the flexible fixture library developed by our company are as follows:

(1) The layout of the equipment is compact and the floor space is small;

(2) It can be constructed in stages, and the investment cost is low;

(3) The number of corresponding models can be set, and a maximum of 6 models can be quickly and randomly switched to production;

(4) No need for manual control, quick response, precise control, and intelligent production.

No	Technical parameter item	"Work" type flexible fixture library	"One" Type Flexible Fixture Library	"M" Type Flexible Fixture Library
01	Positioning accuracy (mm)	0.2	0.2	0.2
02	Repeat positioning accuracy (mm)	±0.1	±0.1	±0.1
03	Models add reserved interfaces	have	have	have
04	Operating table height(mm)	1250	850	1250
05	Fixture transfer speed (m/s)	1.5	1.5	1.5
06	Fixture switching beat(s)	50	10	20
07	Pallet rated load (kgf)	2000	2000	2000
08	Bearing roller	have	none	have
09	positioning roller	have	none	have
10	Fixture transfer drive method	rack and pinion	rack and pinion	rack and pinion
11	Adapt to the number of production models	1~4 (expandable)	1~4 (expandable)	1~6
