Lithium Polymer Battery Composition And Capacity Device

MOQ:	Negotiable
Price:	Negotiable
Standard Packaging:	Packed with plastic films and wrap with strips
Delivery Period:	According to customer's requirement
Payment Method:	Negotiable
Supply Capacity:	Strong production capacity

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CEI-Kinte

Certification

ISO9001/FEM/ISO14001/OHSAS 18001

Model Number

Customized

Professional R&D Team

Manufacturing:

In-house

Test Methods:

Design According To Process Requirements

Performance Testing:

High-precision

Sorting Device:

Automatic

Registration Device:

Automatic

Lithium Polymer Battery:

Composition And Capacity Device

Logistics System:

Fully Automatic

Highlight:

ISO14001 ev battery test equipment

ev battery test equipment ISO14001

lithium polymer battery device

Product Description

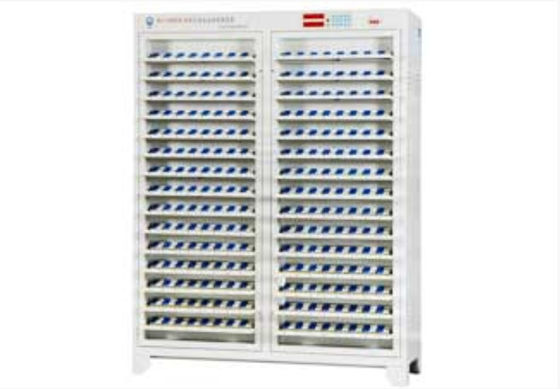

Lithium polymer battery composition and capacity device

BS-9088 series polymer lithium battery automatic detection device is suitable for automatic composition and capacity equipment of flexible electrode lithium batteries such as polymers and flexible packaging.

Features

The patented invention technology with independent intellectual property rights is suitable for the formation and capacity separation of polymer lithium-ion batteries.

It adopts the patented constant current-stabilized power supply, and there is no impact when switching from constant current to constant voltage, which is especially suitable for lithium-ion battery charging requirements.

Each channel has a completely independent constant current-regulated power supply, and the self-contained circuits do not affect each other.

The patented technology cancels the relay, realizes the non-contact control, and greatly improves the reliability.

specific model	BS-9088J	BS-9088K	BS-9088M
specific model	BS-9088J-3A	BS-9088K-3A	BS-9088M-3A
number of channels	384	480	512
Fixture Type	Polymer Fixtures
Fixture layer spacing (mm)	125	100	100
Fixture layers	12	15	16
Fixture spacing (mm)	70
Charge and discharge current range (A)	0.01 ～ 2 or 0.01 ～ 3
Voltage accuracy (mV)	±5
Current accuracy	±(0.1% FS + 0.1% RD)
Working power	three phase AC380V±5% 50Hz
Dimensions	1450×500×1800
