Flexible Framing System Skid Flexible System Equipment
  • name

Flexible Framing System Skid Flexible System Equipment

MOQ: Negotiable
Price: Negotiable
Standard Packaging: Packed with plastic films and wrap with strips
Delivery Period: According to customer's requirement
Payment Method: Negotiable
Supply Capacity: Strong production capacity
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CEI-Kinte
Certification
ISO9001/FEM/ISO14001/OHSAS 18001
Model Number
Customized
R&D:
Professional R&D Team
Workshop:
Press Shop/Body Shop/Paint Shop/Assembly Shop
Equipment:
Automation
Manufacturing:
In-house
Production Efficiency:
Improvement
Production Line:
New Line/Renovation & Upgrading
Investment Cost:
Optimizing
Factory Space:
Maximum Utilization
Highlight:

Flexible Framing Systems

,

Framing Systems OHSAS 18001

,

Flexible System Equipment

Product Description

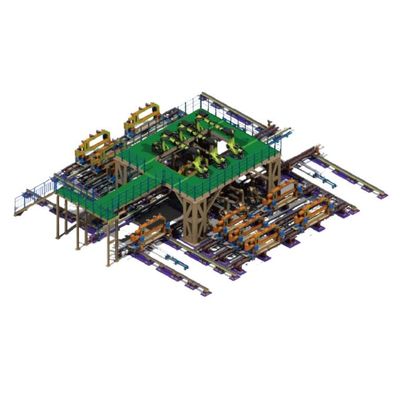

Flexible Framing System Skid

Flexible Framing System-Skid is the system for multi-models flexible assembly in one line at high takt and for storing, changing and locating fixtures. This world leading product with a number of international patents is researched independently by Mino. It covers the most important five concerns of end users, such as high accuracy, short cycle time, high flexibility, less investment and less space occupation. With modular design, easy to install and maintain. Planning one time, adding models phase by phase lowers initial cost.

Product Parameters

Cycle time Repositioning accuracy Non-welding time Number of robots Space occupation Co-line models Phase construction Full servo drive
60JPH ±0.05mm ≥23s 14 (≤16) 21m×20m 7 (model exchange within CT) 1→2→3→5→7 Model




Product Advantages
  • Flexibility
    Maximum 7 Models Co-line
    Models Switching at any time
    Compatible with Various Body Conveyor System
    Compatible with Various Floor Positioning System
  • Accuracy
    Repositioning Accuracy: 0.05 mm
    Fixture Rigidity of Body Side: 0.5mm/500kgf
    One-side Fixture Locking Force: 8.8T
  • Investment
    Modular Design
    Investment by phases
    Quick Import and Export of Models
  • Occupation
    Various layouts to adapt to a variety of sites
    6 models narrowest to
    6 models shortest to
  • Cycle Time
    Non-welding Time: ≥23s
    Number of Robots: 12~14
    Fixture Switching Time: ≤9s
    Fixture Matching Time: ≤37s
