NC Locator The Three Axis Flexible Positioning Unit
  • name
  • name

NC Locator The Three Axis Flexible Positioning Unit

MOQ: Negotiable
Price: Negotiable
Standard Packaging: Packed with plastic films and wrap with strips
Delivery Period: According to customer's requirement
Payment Method: Negotiable
Supply Capacity: Strong production capacity
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CEI-Kinte
Certification
ISO9001/FEM/ISO14001/OHSAS 18001
Model Number
Customized
R&D:
Professional R&D Team
Workshop:
Press Shop/Body Shop/Paint Shop/Assembly Shop
Equipment:
Automation
Manufacturing:
In-house
Production Efficiency:
Improvement
Production Line:
New Line/Renovation & Upgrading
Investment Cost:
Optimizing
Factory Space:
Maximum Utilization
Highlight:

Flexible Positioning Unit

,

Three Axis Positioning Unit

,

OHSAS 18001 Positioning Unit

Product Description

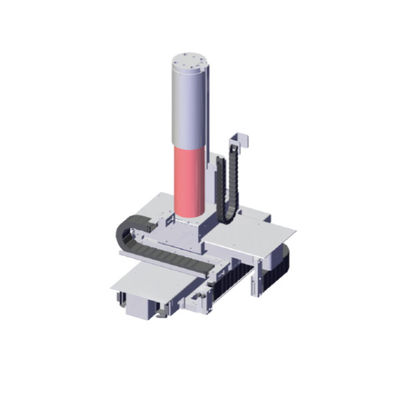

NC LOCATOR, THE THREE-AXIS FLEXIBLE POSITIONING UNIT



PRODUCT INTRODUCTION

NC Locator, the Three-Axis Flexible Positioning Unit

The three-axis flexible positioning unit is mainly used in the body in white welding workshop. It can realize the rapid and flexible positioning of the body in white, improve the cycles and the flexibility of welding equipment, and reduce the development cost of new models.

Pic1





Product Module

Pic2



Product Parameters

Degrees of freedom Dynamic load Static load Repositioning accuracy XYZ Weight of Locater Teachingprogramming Pendant Protection class Vibration
3

100kg (Light load)

225kg (Heavy load)

200kg (Light load)

300kg (Heavy load)

 ±0.05mm

X axis: 200/300/400/600/800mm

Y axis: 200/300/400mm

Z axis: 200/300/400mm

 220kg (NCL424) Positive IP54 4.9m/S2





Product Advantages



Small occupation

The most compact structure of similar products



High precision

Repositioning accuracy ± 0.05mm



High speed

Complete model switching within 3s



Origin memory

Power failure and plug or unplug joint does not lose the origin



One step return-to-zero

All X, Y and Z axes can be one step to zero through the indicator



NC Locator The Three Axis Flexible Positioning Unit 0NC Locator The Three Axis Flexible Positioning Unit 1
