60JPH Automated Plant Aluminum Body
  • name

60JPH Automated Plant Aluminum Body

MOQ: Negotiable
Price: Negotiable
Standard Packaging: Packed with plastic films and wrap with strips
Delivery Period: According to customer's requirement
Payment Method: Negotiable
Supply Capacity: Strong production capacity
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
CEI-Kinte
Certification
ISO9001/FEM/ISO14001/OHSAS 18001
Model Number
Customized
R&D:
Professional R&D Team
Workshop:
Press Shop/Body Shop/Paint Shop/Assembly Shop
Equipment:
Automation
Manufacturing:
In-house
Production Efficiency:
Improvement
Production Line:
New Line/Renovation & Upgrading
Investment Cost:
Optimizing
Factory Space:
Maximum Utilization
Highlight:

FEM Flexible Manufacturing System Equipment

,

Flexible Manufacturing System Equipment FEM

,

Aluminum Body automatic plant

Product Description

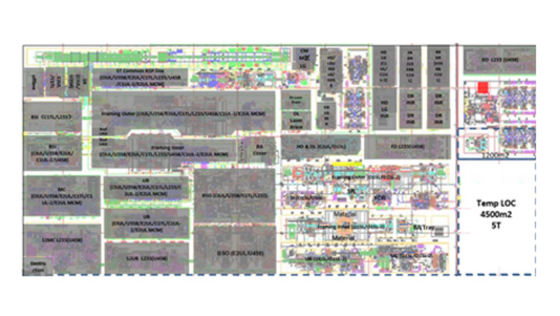

60JPH Automated Plant Aluminum Body





Area 10000m2
Business Scope Main line, Side panel, floor, closure line. Roof Assembly line
Models 1+2(reserve)
Cycle Time 10JPH (307s)
OEE 85%
Automation Rate 90%
Robots 136
Main Process Aluminum Spot welding, Gluing, CMT Brazing. Automated Screwing, Aluminum Laser Brazing, Roller hemming, FDS, SPR





Fixture switching for flexible production



The key to the realization of a flexible production line is that the same station can realize the switching of fixtures for different models. In the process of body manufacturing, according to different switching methods, it can be divided into overall switching, partial switching and full servo switching.



Overall switching, the production station has multiple sets of production fixtures, which means that during the production process, a complete set of production fixtures is switched to the production station by means of rotation or movement. There are mainly rotary table switching, movable rotary table switching, and trolley switching.



Partial switching mainly occurs when most of the positioning parts of different workpieces are the same, and only some parts are different. Among modern designs, many market-tested and approved designs can be modularized, which makes full use of the achievements of excellent designs and shortens the development cycle. When the product is replaced, only the local positioning is changed. The corresponding fixtures are only partially changed. In the body production, the floor positioning only needs to switch the positioning of the rear wheel cover, so the main line trolley often performs partial switching at the wheel cover.



Theoretically speaking, a sufficiently fine servo fixture can be applied to various models according to the digital model. The future servo fixture can use one station, reducing the number of trolleys and fixtures, and greatly saving space.

60JPH Automated Plant Aluminum Body 0
