Flexible Framing System Skid

MOQ:	Negotiable
Price:	Negotiable
Standard Packaging:	Packed with plastic films and wrap with strips
Delivery Period:	According to customer's requirement
Payment Method:	Negotiable
Supply Capacity:	Strong production capacity

Detail Information

Product Description

Detail Information

Place of Origin

China

Brand Name

CEI-Kinte

Certification

ISO9001/FEM/ISO14001/OHSAS 18001

Model Number

Customized

Professional R&D Team

Workshop:

Press Shop/Body Shop/Paint Shop/Assembly Shop

Equipment:

Automation

Manufacturing:

In-house

Production Efficiency:

Improvement

Production Line:

New Line/Renovation & Upgrading

Investment Cost:

Optimizing

Factory Space:

Maximum Utilization

Highlight:

Flexible framing system

framing system Skid

ISO9001 framing systems

Product Description

FLEXIBLE FRAMING SYSTEM SKID

PRODUCT INTRODUCTION

Flexible Framing System Skid

Pic1

Flexible Framing System-Skid is the system for multi-models flexible assembly in one line at high takt and for storing, changing and locating fixtures. This world leading product with a number of international patents is researched independently by Mino. It covers the most important five concerns of end users, such as high accuracy, short cycle time, high flexibility, less investment and less space occupation. With modular design, easy to install and maintain. Planning one time, adding models phase by phase lowers initial cost.

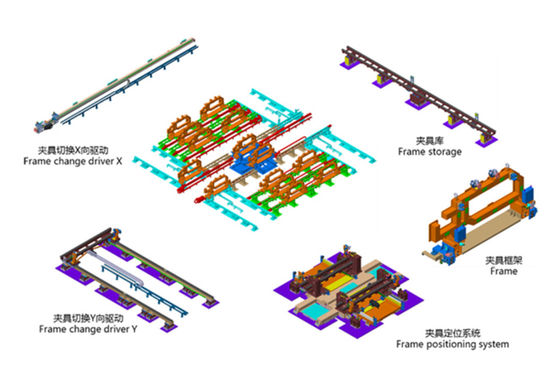

Product Module

Pic2

Product Parameters

Cycle time	Repositioning accuracy	Non-welding time	Number of robots	Space occupation	Co-line models	Phase construction	Full servo drive
60JPH	±0.05mm	≥23s	14 (≤16)	21m×20m	7 (model exchange within CT)	1→2→3→5→7 Model

Product Advantages

Flexibility

Maximum 7 Models Co-line

Models Switching at any time

Compatible with Various Body Conveyor System

Compatible with Various Floor Positioning System

Accuracy

Repositioning Accuracy: 0.05 mm

Fixture Rigidity of Body Side: 0.5mm/500kgf

One-side Fixture Locking Force: 8.8T

Occupation

Various layouts to adapt to a variety of sites

6 models narrowest to

6 models shortest to

Cycle Time

Non-welding Time: ≥23s

Number of Robots: 12~14

Fixture Switching Time: ≤9s

Fixture Matching Time: ≤37s

Investment

Modular Design

Investment by phases

Quick Import and Export of Models
